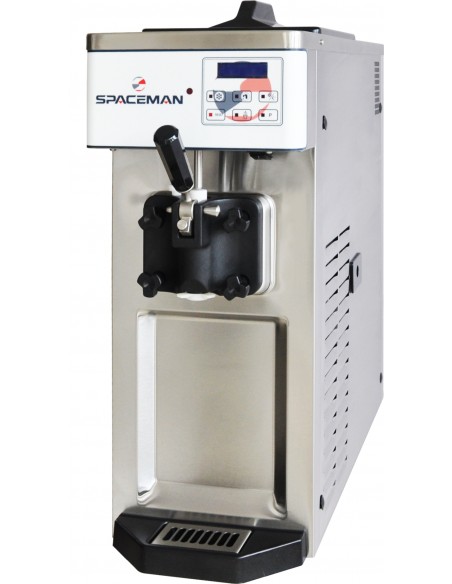

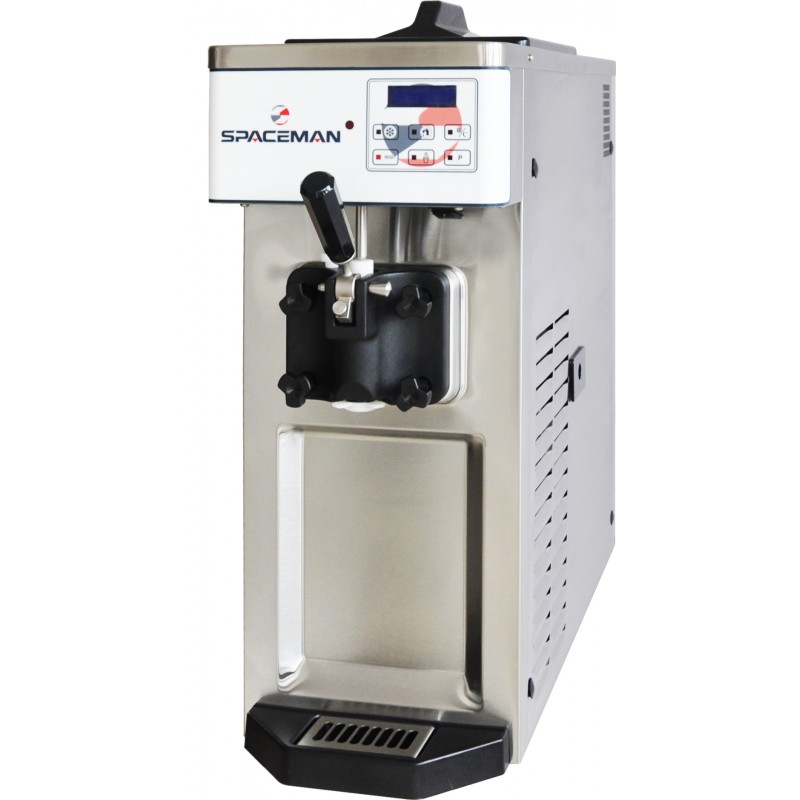

Blue Ice T5B Soft Serve Ice Cream Machine

T5B SOFT SERVE ICE CREAM MACHINE

The most compact single fl avour soft serve machine in the market, Ideal for soft ice cream, sorbet and frozen yogurt. manufactured to the highest specs with heat treatment feature to reduce cleaning to up - to 21 days.

FAST FREEZE DOWN

Patented high effi ciency heat exchanger allows fast freeze down with low energy consumption.

DIGITAL CONTROL AND DISPLAY

Digital control provides access to system settings and displays critical system information.

AUTO PROGRAMMING

Allows automatic switching of operation modes based on preset schedules.

STANDBY

Maintains product temperature in both mix hopper and freezing cylinder below 4.4ºC (40ºF) overnight.

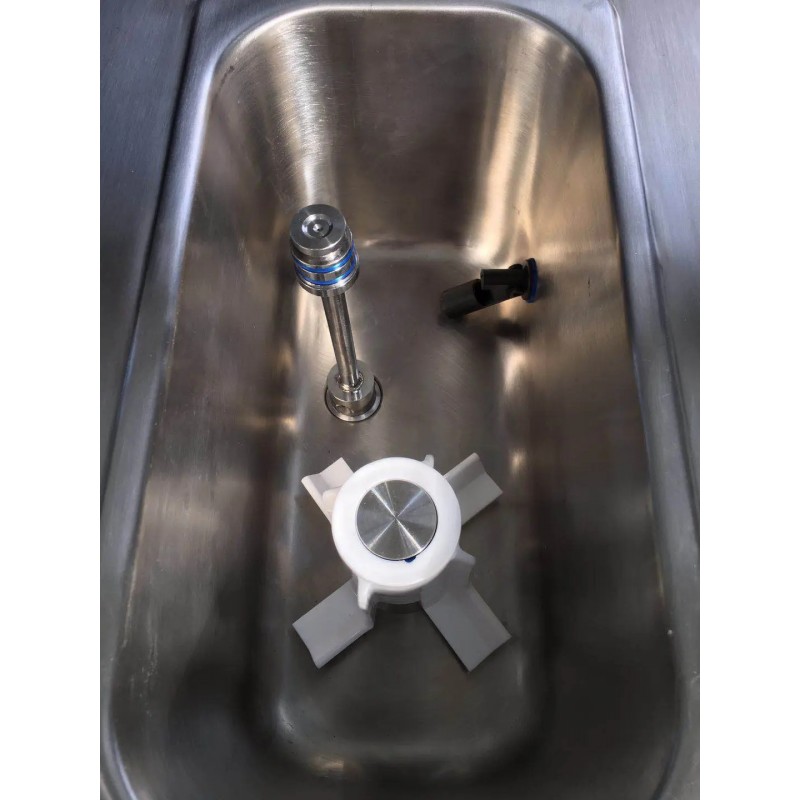

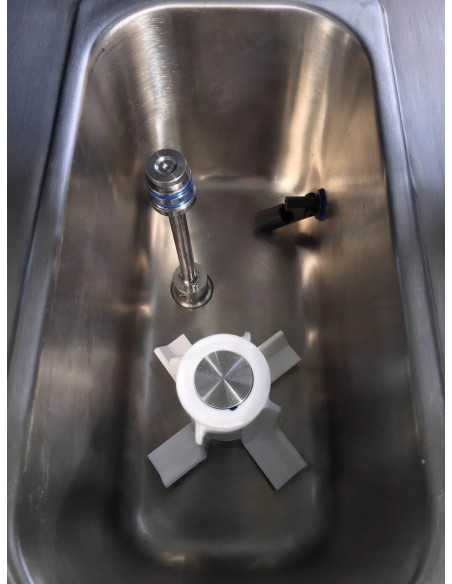

HOPPER AGITATOR

Maintain product consistency and prevent product separation.

DIRECT DRIVE TRANSMISSION

Eliminates consumable moving parts and increases transmission effi ciency.

DEFROST FOR CLEANING

Increases effi ciency during cleaning by heating frozen product in cylinder.

SAFETY PROTECTIONS

• Low temperature and motor overload shut-off to protect in the event of cylinder freeze up
• High pressure switch to prevent compressor overheating

PASTEURIZATION FEATURE

Allows product to stay fresh in the machine for up to 21 days.

SPECIFICATIONS:

Flavours: 1

Freezing Cylinders: 1 x 1.2L

Mix Hoppers: 1 x 8L (5L for A)

Output Capacity (80 grams): 150 serves/hr

Clearance Requirements: 150mm/6” on back

WEIGHT KG/LB (Gravity)

Net: 90 / 198

Shipping: 102 / 225

Volume: 0.27 CBM

DIMENSIONS: NET (MM/IN)

Width: 284 / 11.2

Depth: 754 / 29.7

Height: 755 / 29.7

ELECTRICAL

13 AMP
