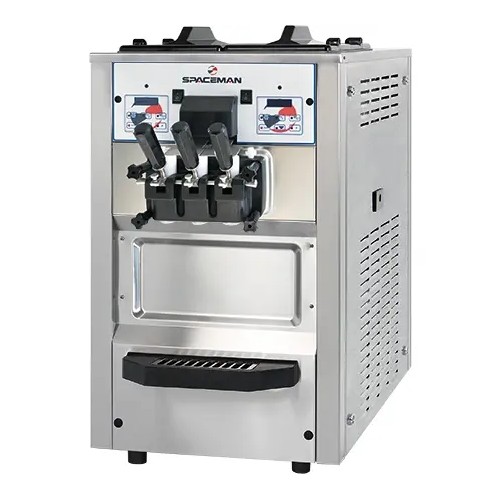

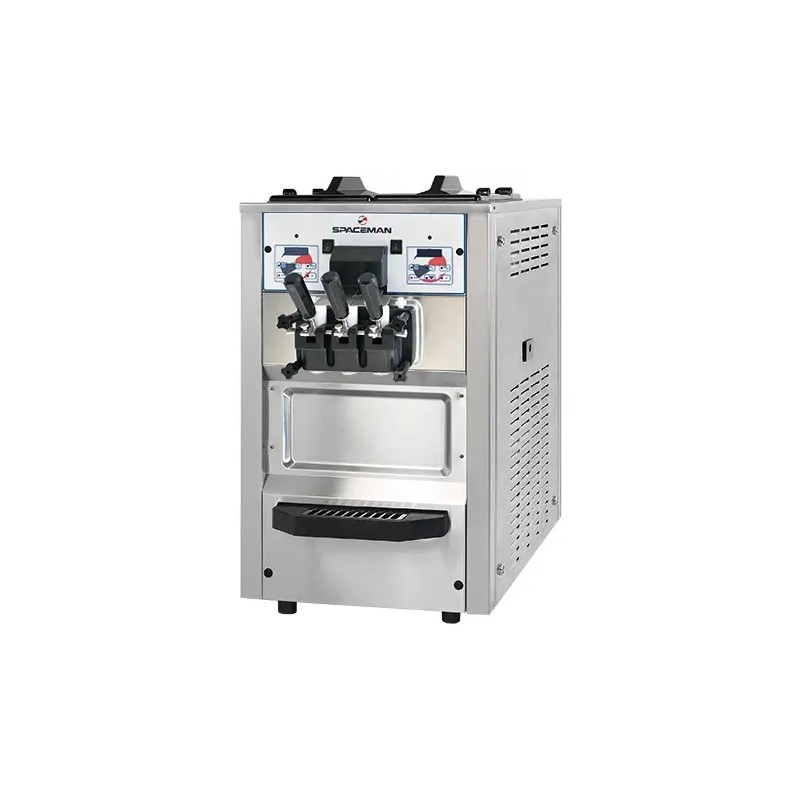

Blue Ice Spaceman Soft Ice Cream Machine T46A

T46A SOFT SERVE ICE CREAM MACHINE

A well designed soft serve ice cream machine for easy and fast production of ice cream, frozen yoghurt and sorbet.

• Twin twist flavor
• Countertop
• Pump feed
• Independent control system for each flavour

Ideal for any extremely high capacity outlets to serve soft ice cream, frozen yogurt, gelato or sorbet. Fully loaded with all standard options.

FREEZE DOWN

Patented high effi ciency heat exchanger allows fast freeze down with low energy consumption.

DIGITAL CONTROL AND DISPLAY

Microprocessor control provides access to system settings and additional functions. Digital interface displays critical info as system status, temperatures, dispense count, errors, etc.

LOW MIX INDICATOR

Light turns “ON” at low mix to alert operator to add mix.

SELF CLOSING DISPENSING VALVE

Automatically prevents product overfl ow after dispense.

DISPENSE SPEED CONTROL

Provides fl exibility in dispense rate control for different applications.

HOPPER AGITATORS

Maintain product consistency and prevent product separation.

AUTO PROGRAMMING

Allows automatic switching of operation modes based on preset schedules.

STANDBY

Maintains product temperature in both mix hopper and freezing cylinder below 4.4ºC (40ºF) overnight.

SAFETY PROTECTIONS

• Low temperature and motor overload shutoffs to protect in the event of cylinder freeze up
• High pressure switch to prevent compressor overheating
• Thermal overload to protect from motor overheating

SPECIFICATIONS:

• Flavours: 2 + Twist
• Freezing Cylinders: 2 x 1.7L
• Mix Hoppers: 2 x 12L /A: 10L
• Output Capacity (80 grams): 550 serves/hr
• Clearance Requirements: 152mm/6” on back

WEIGHT KG/LB (Gravity)

• Net: 195 / 433
• Shipping: 212/ 471
• Volume: 0.62 CBM / 2 1.76 CBF

DIMENSIONS NET (MM/IN)

• Width: 552 / 21.7
• Depth: 772 / 30.4
• Height: 935 / 36.8

ELECTRICAL

• Single Phase 16 AMP
• Single Phase 16 AMP
